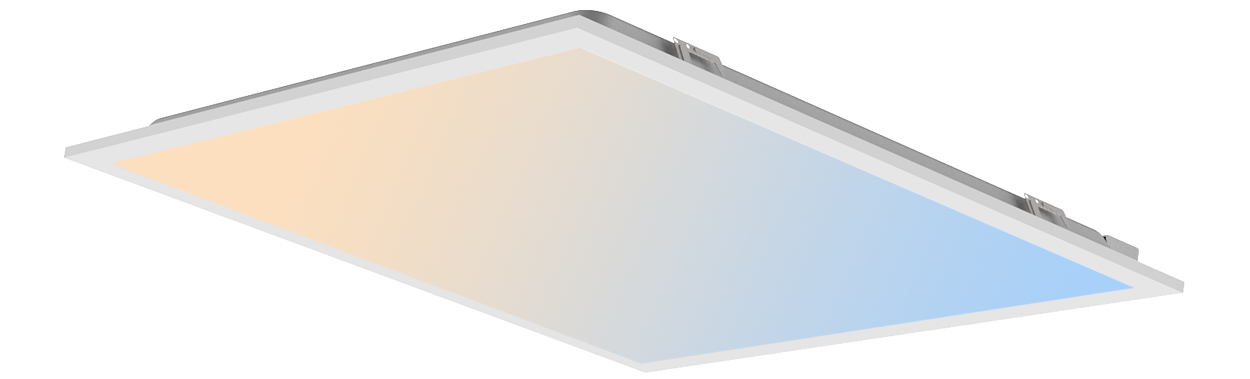

Bright, uniform light. Sleek design.
| SKU | WATTAGE | OUTPUT | CCT | CRI | VOLTAGE | Operating Temp | ETL | DLC | Warranty |
| J-B2-S40-3565-(blank,-S) | 15W/20W/25W/30W/40W | 1,950-5,000 Lumens* | 3500K-4000K-5000K-5700K-6500K | ≥80 | 120-277VAC, 50/60Hz, 0-10V Dimming | -20°C to 45°C | Wet Locations | Premium | 5 Years |
| J-B4-S72-3565-(blank,-S) | 30W/40W/50W/60W/72W | 3,900-9,000 Lumens* | 3500K-4000K-5000K-5700K-6500K | ≥80 | 120-277VAC, 50/60Hz, 0-10V Dimming | -20°C to 45°C | Wet Locations | Premium | 5 Years |
| J-B4-S50-1536-(blank.-s) | 15W/20W/30W/40W/50W | 1,950-6,500 Lumens* | 3500K-4000K-5000K-5700K-6500K | ≥80 | 120-277VAC, 50/60Hz, 0-10V Dimming | -20°C to 45°C | Wet Locations | Premium | 5 Years |
| J-B14-S40-3565-(blank,-S) | 15W/20W/25W/30W/40W | 1,950-5,000 Lumens* | 3500K-4000K-5000K-5700K-6500K | ≥80 | 120-277VAC, 50/60Hz, 0-10V Dimming | -20°C to 45°C | Wet Locations | Premium | 5 Years |
*Indicated lumen value is for 4000K CCT.
Visit the Design Lights Consortium website for more information on product DLC qualification.
FEATURES & SPECIFICATIONS
Construction:
Durable integrated aluminum frame

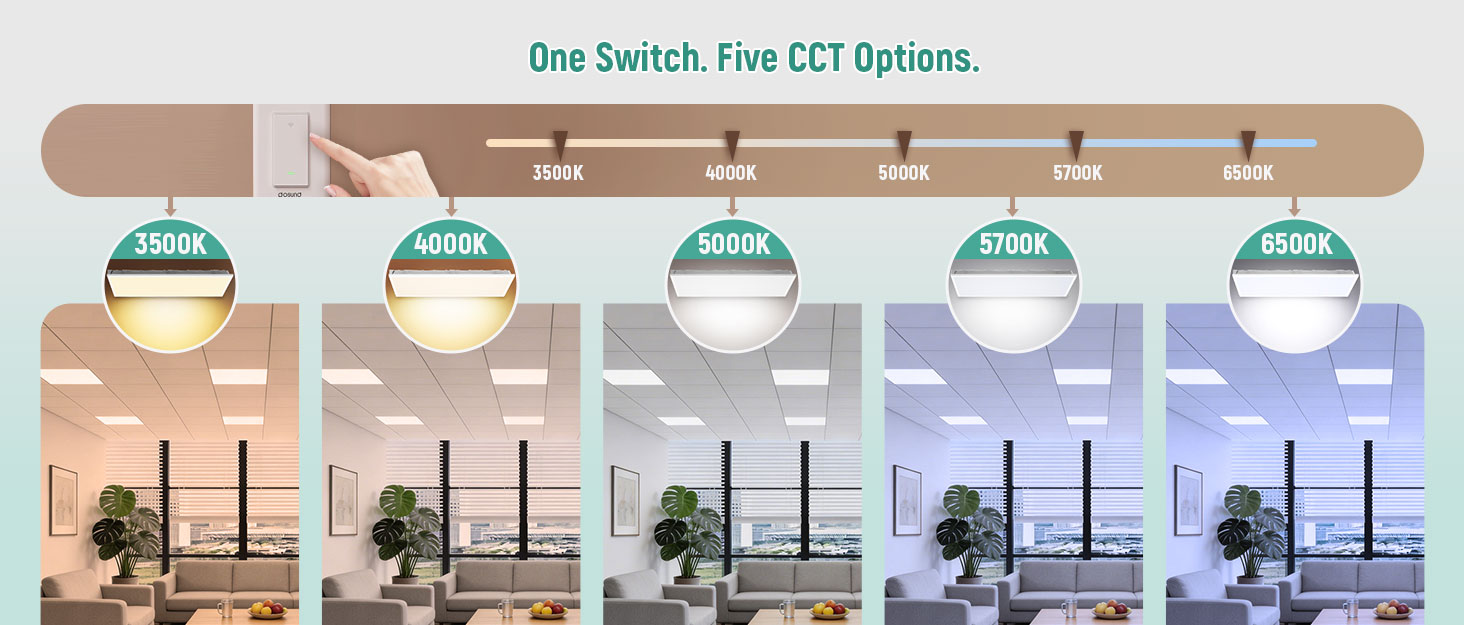

Five selectable wattage settings and five selectable CCT settings are integrated into the driver
Reduce inventory—one SKU replaces up to 25 models
Electrical:
Input Voltage: 120–277 VAC, 50/60 Hz
0-10V dimming
THD≤20%, PF≥0.9

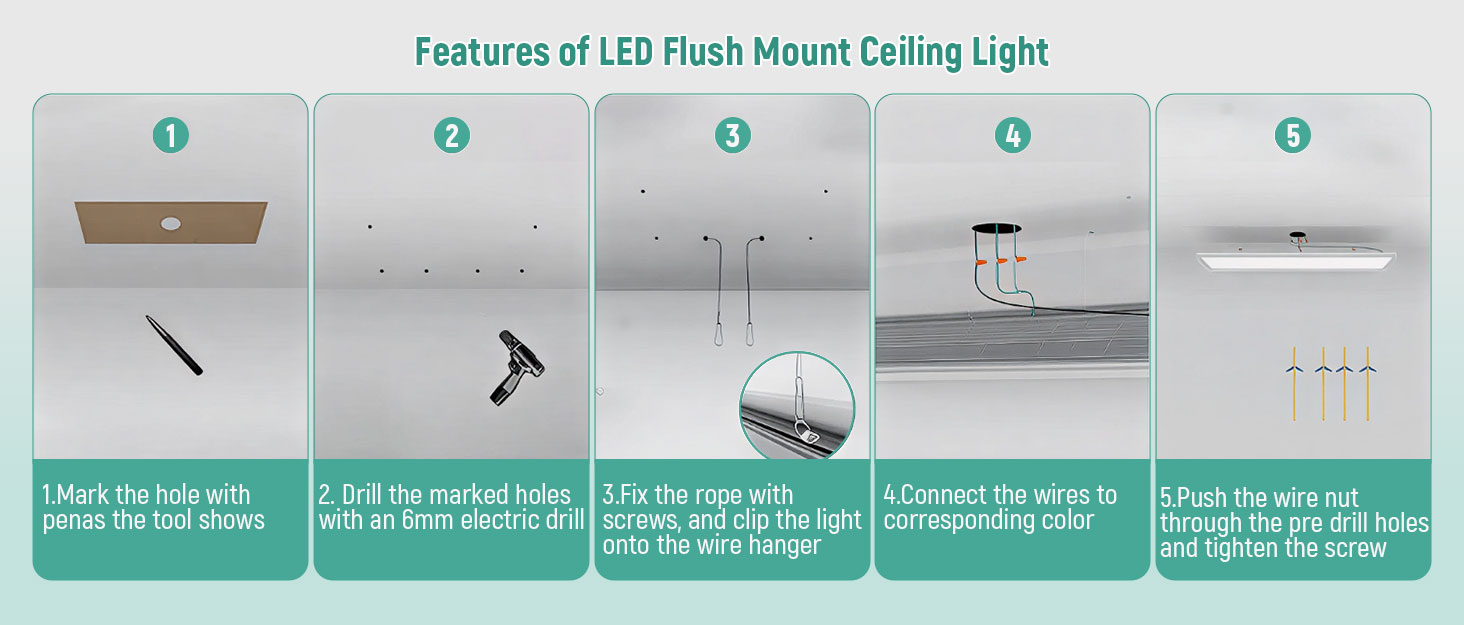

Installation:
Suitable for recessed installation in T-bar ceilings.

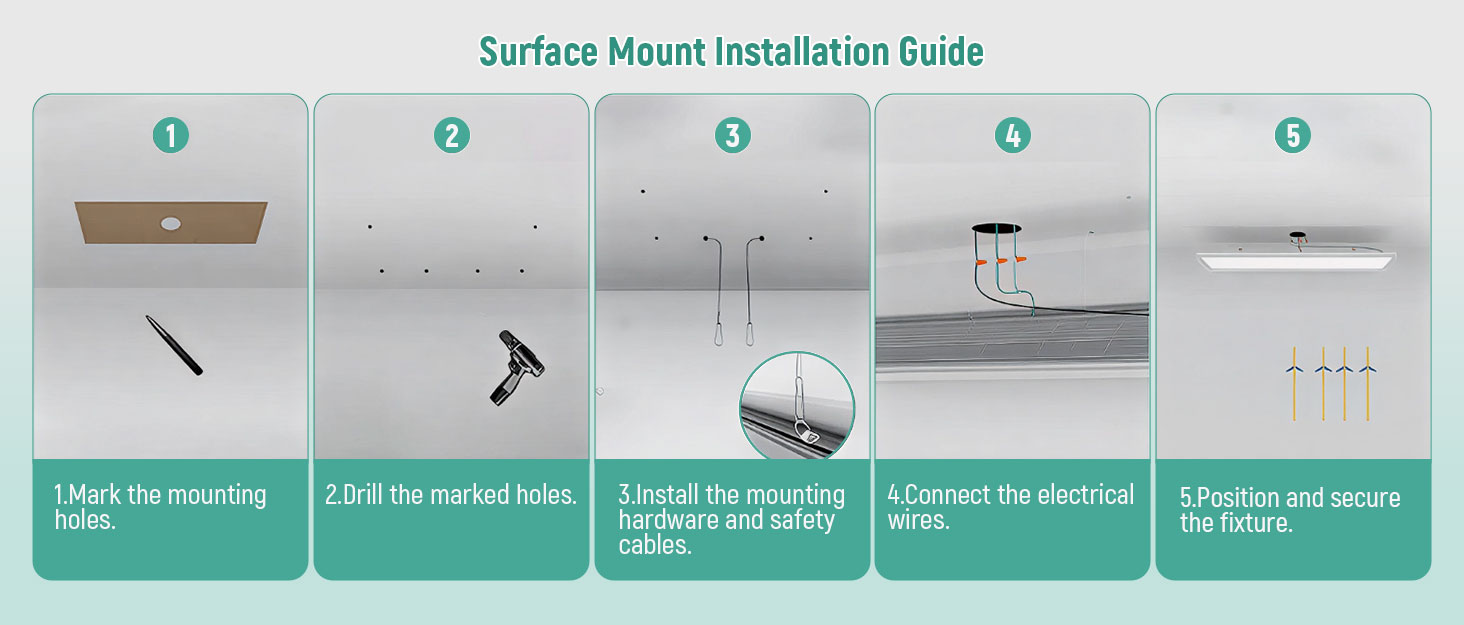

Accessories for suspended and surface mounting are also available.
Operating Temperature: -20°C to 45°C

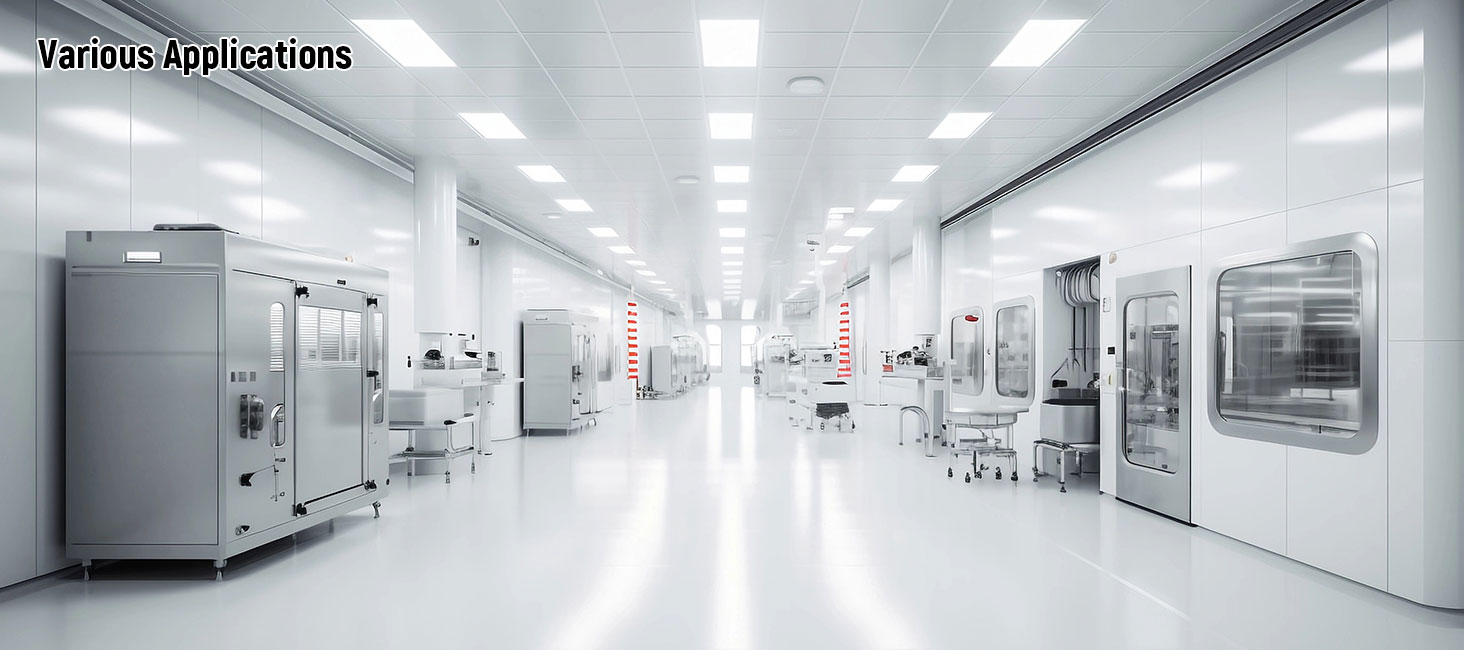

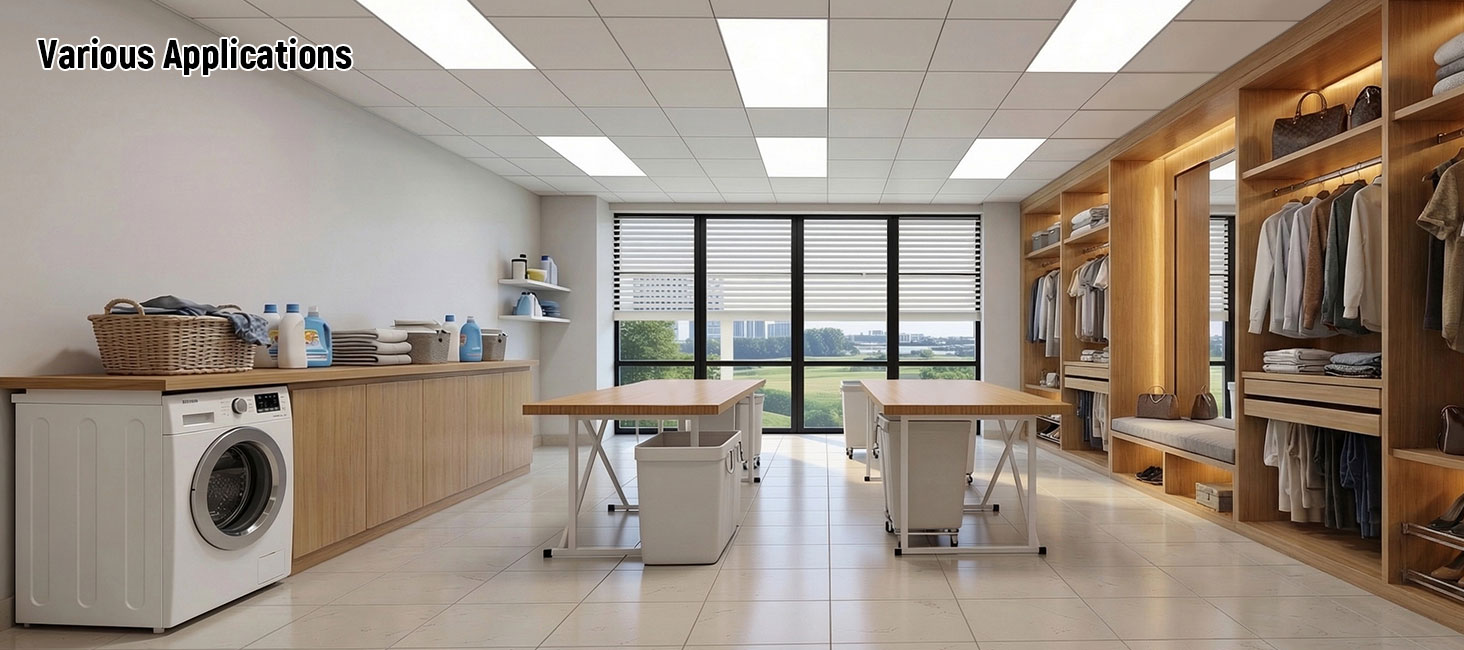

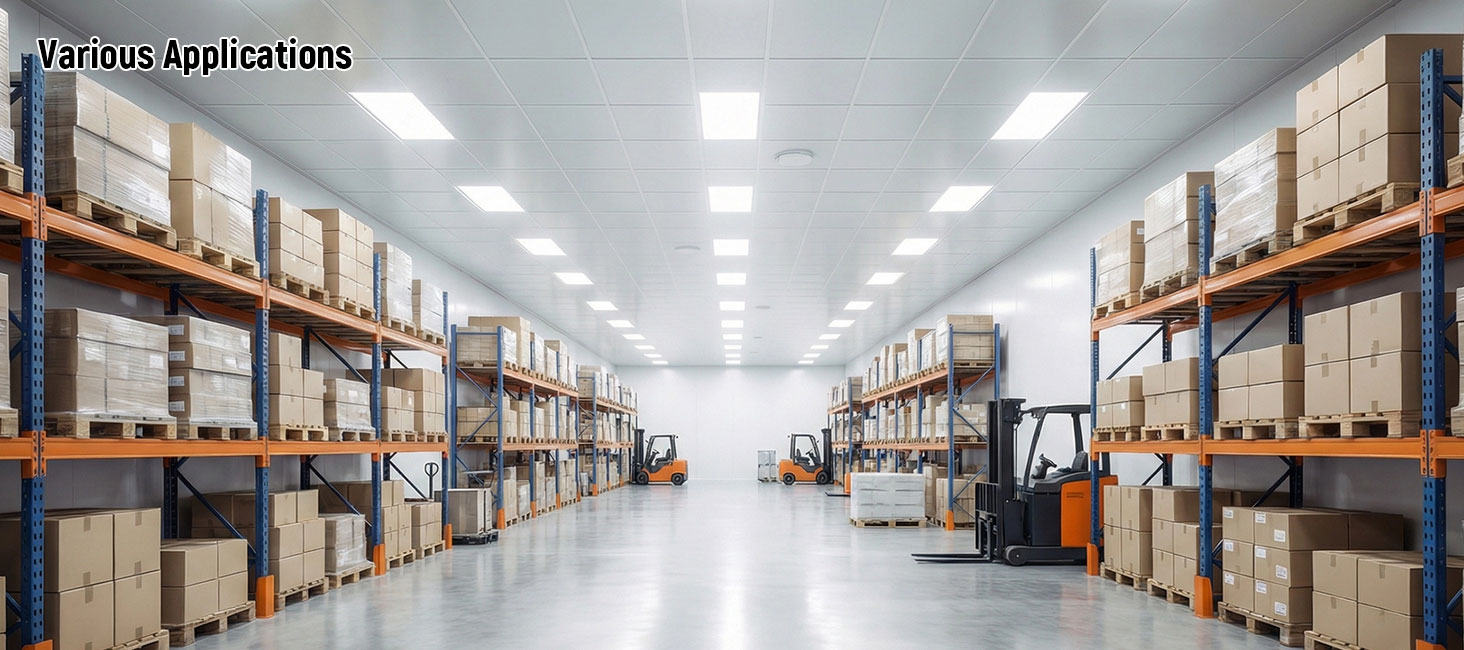

Applications
Ideal for offices, retail stores, schools, restaurants, healthcare facilities, residential buildings, and hospitality venues.
