| SKU | WATTAGE | OUTPUT | CCT | CRI | VOLTAGE | POWER & CCT | Operating Temp | Certification | Efficacy (LPW) | Warranty |
| J-WP11F-120W-S4W3C | 60W / 90W / 100W / 120W | 19,200 Lumens | 5000K / 4000K / 3000K | ＞80 | 120-277V | Fixed | -40°C to +50°C | UL DLC Premium | Up to 130lm/w | 5 year limited warranty |
Visit the Design Lights Consortium website for more information on product DLC qualification.
**Indicated lumen value is for 3000K CCT.
FEATURES AND SPECIFICATIONS

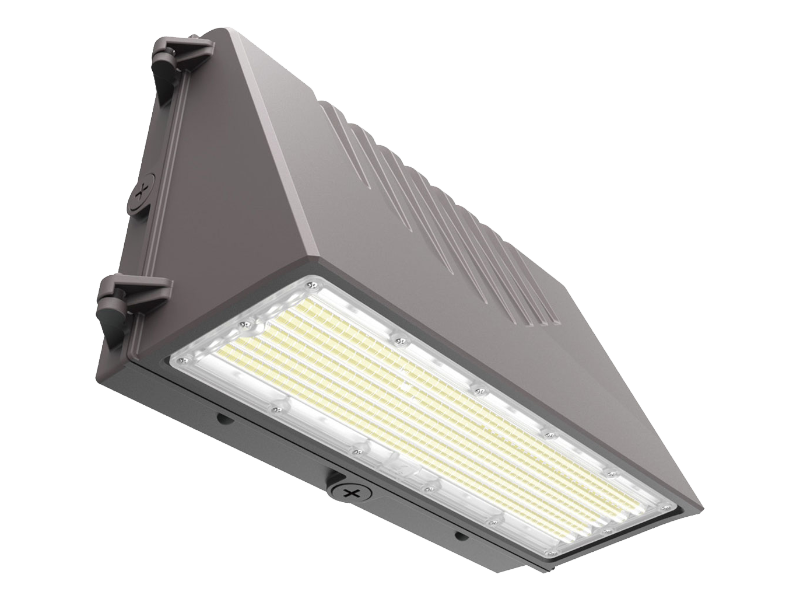

Construction:
Housing: Die-cast Aluminum
Lens: Polycarbonate
Easy to install and operate
Electrical:
High efficacy up to 160lm/W
AC120-277V, 0-10V dimming
Surge Protection: 6KV
CCT & Wattage Selectable
Light Distribution: Type III
Waterproof: IP65 rated
Installation:
Microwave motion sensor and emergency driver available
Automated Dusk to Dawn photocell functionality
Wall Mount: Five 1/2" knockouts: one on each side for convenient installation
Applications
Wall mount: Ideal for mounting to any vertical surface and attaches to a J-box, can be surface mounted using the conduit entry points on all four sides of the housing enclosure hinges open for easy installation and maintenance
